dynaSpec: dynamic spectrogram visualizations

lifecycle Dependencies Project Status: Active The project has reached a stable, usable state and is being actively developed. Licence minimal R version CRAN_Status_Badge Total Downloads

sketchy sticker

A set of tools to generate dynamic spectrogram visualizations in video format. FFMPEG must be installed in order for this package to work (check this link for instructions and this link for troubleshooting installation on Windows). The package relies heavily on the packages seewave and tuneR.

Please cite dynaSpec as follows:

Araya-Salas, Marcelo & Wilkins, Matthew R.. (2020), dynaSpec: dynamic spectrogram visualizations in R. R package version 1.0.0.

Install/load the package from CRAN as follows:


# From CRAN would be
install.packages("dynaSpec")

#load package
library(dynaSpec)

# and load other dependencies
library(viridis)
library(tuneR)
library(seewave)

To install the latest developmental version from github you will need the R package remotes:


# From github
remotes::install_github("maRce10/dynaSpec")

#load package
library(dynaSpec)

Installation of external dependencies can be tricky on operating systems other than Linux. An alternative option is to run the package through google colab. This colab notebook explain how to do that step-by-step.

Background

This package is a collaboration between Marcelo Araya-Salas and Matt Wilkins. The goal is to create static and dynamic visualizations of sounds, ready for publication or presentation, without taking screen shots of another program. Marcelo’s approach (implemented in the scrolling_spectro() function) shows a spectrogram sliding past a fixed point as sounds are played, similar to that utilized in Cornell’s Macaulay Library of Sounds. These dynamic spectrograms are produced natively with base graphics. Matt’s approach creates “paged” spectrograms that are revealed by a sliding highlight box as sounds are played, akin to Adobe Audition’s spectral view. This approach is in ggplot2 natively, and requires setting up spec parameters and segmenting sound files with prep_static_ggspectro(), the result of which is processed with paged_spectro() to generate a dynamic spectrogram.


Marcelo’s Approach: “Scrolling Dynamic Spectrograms”


To run the following examples you will also need to load a few more packages as well as warbleR >= 1.1.24. It can be installed as follows:


# From github
devtools::install_github("maRce10/warbleR")

#load package
library(warbleR)

A dynamic spectrogram of a canyon wren song with a viridis color palette:



data("canyon_wren")

scrolling_spectro(wave = canyon_wren, wl = 300,
              t.display = 1.7, pal = viridis,
              grid = FALSE, flim = c(1, 9),
              width = 1000, height = 500,
              res = 120, file.name = "default.mp4")

Black and white spectrogram:


scrolling_spectro(wave = canyon_wren, wl = 300,
          t.display = 1.7, pal = reverse.gray.colors.1,
          grid = FALSE, flim = c(1, 9),
          width = 1000, height = 500,
          res = 120, file.name = "black_and_white.mp4",
          collevels = seq(-100, 0, 5))

A spectrogram with black background (colbg = “black”):


scrolling_spectro(wave = canyon_wren, wl = 300,
              t.display = 1.7, pal = viridis,
              grid = FALSE, flim = c(1, 9),
              width = 1000, height = 500, res = 120,
              file.name = "black.mp4", colbg = "black")

Slow down to 1/2 speed (speed = 0.5) with a oscillogram at the bottom (osc = TRUE):


scrolling_spectro(wave = canyon_wren, wl = 300,
              t.display = 1.7, pal = viridis,
              grid = FALSE, flim = c(1, 9),
              width = 1000, height = 500, res = 120,
              file.name = "slow.mp4", colbg = "black",
              speed = 0.5, osc = TRUE,
              colwave = "#31688E99")

Long-billed hermit song at 1/5 speed (speed = 0.5), removing axes and looping 3 times (loop = 3:


data("Phae.long4")

scrolling_spectro(wave = Phae.long4, wl = 300,
    t.display = 1.7, ovlp = 90, pal = magma,
    grid = FALSE, flim = c(1, 10), width = 1000,
    height = 500, res = 120, collevels = seq(-50, 0, 5),
    file.name = "no_axis.mp4", colbg = "black",
    speed = 0.2, axis.type = "none", loop = 3)

Visualizing a northern nightingale wren recording from xeno-canto using a custom color palette:


ngh_wren <- read_wave("https://www.xeno-canto.org/518334/download")

custom_pal <- colorRampPalette( c("#2d2d86", "#2d2d86", reverse.terrain.colors(10)[5:10]))

scrolling_spectro(wave = ngh_wren, wl = 600,
    t.display = 3, ovlp = 95, pal = custom_pal,
    grid = FALSE, flim = c(2, 8), width = 700,
    height = 250, res = 100, collevels = seq(-40, 0, 5),
    file.name = "../nightingale_wren.mp4", colbg = "#2d2d86", lcol = "#FFFFFFE6")

Spix’s disc-winged bat inquiry call slow down (speed = 0.05):


data("thyroptera.est")

# extract one call
thy_wav <- attributes(thyroptera.est)$wave.objects[[12]]

# add silence at both "sides""
thy_wav <- pastew(tuneR::silence(duration = 0.05,
            samp.rate = thy_wav@samp.rate, xunit = "time"),
            thy_wav, output = "Wave")

thy_wav <- pastew(thy_wav, tuneR::silence(duration = 0.04,
            samp.rate = thy_wav@samp.rate, xunit = "time"),
            output = "Wave")

scrolling_spectro(wave = thy_wav, wl = 400,
    t.display = 0.08, ovlp = 95, pal = inferno,
    grid = FALSE, flim = c(12, 37), width = 700,
    height = 250, res = 100, collevels = seq(-40, 0, 5),
    file.name = "thyroptera_osc.mp4", colbg = "black", lcol = "#FFFFFFE6",
    speed = 0.05, fps = 200, buffer = 0, loop = 4, lty = 1,
    osc = TRUE, colwave = inferno(10, alpha = 0.9)[3])

Further customization

The argument ‘spectro.call’ allows to insert customized spectrogram visualizations. For instance, the following code makes use of the color_spectro() function from warbleR to highlight vocalizations from male and female house wrens with different colors (after downloading the selection table and sound file from figshare):


# get house wren male female duet recording
hs_wren <- read_wave("https://ndownloader.figshare.com/files/22722101")

# and extended selection table
st <- read.csv("https://ndownloader.figshare.com/files/22722404")

# create color column
st$colors <- c("green", "yellow")

# highlight selections
color.spectro(wave = hs_wren, wl = 200, ovlp = 95, flim = c(1, 13),
              collevels = seq(-55, 0, 5), dB = "B", X = st, col.clm = "colors",
              base.col = "black",  t.mar = 0.07, f.mar = 0.1, strength = 3,
              interactive = NULL, bg.col = "black")

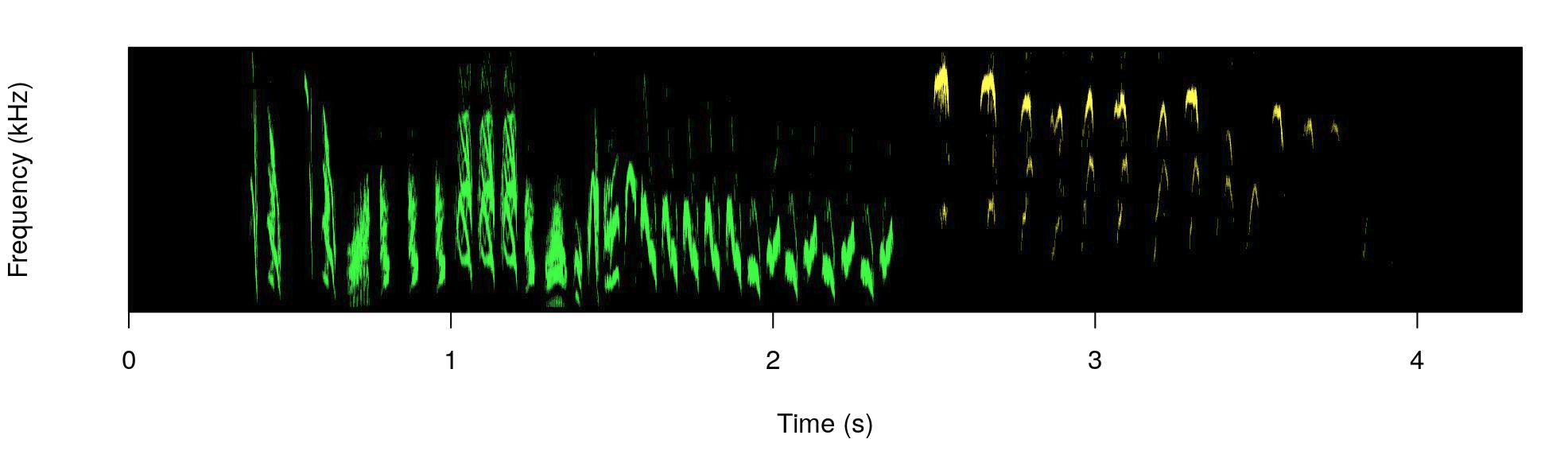

house wren duet

The male part is shown in green and the female part in yellow.

We can wrap the color_spectro() call using the call() function form base R and input that into scrolling_spectro() using the argument ‘spectro.call’:

# save call
sp_cl <- call("color.spectro", wave = hs_wren, wl = 200, ovlp = 95,
              flim = c(1, 13), collevels = seq(-55, 0, 5), strength = 3,
              dB = "B", X = st, col.clm = "colors", base.col = "black",
              t.mar = 0.07, f.mar = 0.1, interactive = NULL, bg.col = "black")

# create dynamic spectrogram
scrolling_spectro(wave = hs_wren, wl = 512,
                  t.display = 1.2, pal = reverse.gray.colors.1,
                  grid = FALSE, flim = c(1, 13), loop = 3,
                  width = 1000, height = 500, res = 120,
                  collevels = seq(-100, 0, 1), spectro.call = sp_cl, fps = 60,
                  file.name = "yellow_and_green.mp4")

This option can be mixed with any of the other customizations in the function, as adding an oscillogram:


# create dynamic spectrogram
scrolling_spectro(wave = hs_wren, wl = 512, osc = TRUE,
                  t.display = 1.2, pal = reverse.gray.colors.1,
                  grid = FALSE, flim = c(1, 13), loop = 3,
                  width = 1000, height = 500, res = 120,
                  collevels = seq(-100, 0, 1),
                  spectro.call = sp_cl, fps = 60,
                  file.name = "yellow_and_green_oscillo.mp4")

A viridis color palette:


st$colors <- viridis(10)[c(3, 8)]

sp_cl <- call("color.spectro", wave = hs_wren, wl = 200,
              ovlp = 95, flim = c(1, 13), collevels = seq(-55, 0, 5),
              dB = "B", X = st, col.clm = "colors",
              base.col = "white", t.mar = 0.07, f.mar = 0.1,
              strength = 3, interactive = NULL)

# create dynamic spectrogram
scrolling_spectro(wave = hs_wren, wl = 200, osc = TRUE,
                  t.display = 1.2, pal = reverse.gray.colors.1,
                  grid = FALSE, flim = c(1, 13), loop = 3,
                  width = 1000, height = 500, res = 120,
                  collevels = seq(-100, 0, 1), colwave = viridis(10)[c(9)],
                  spectro.call = sp_cl, fps = 60,
                  file.name = "viridis.mp4")

Or simply a gray scale:


st$colors <- c("gray", "gray49")

sp_cl <- call("color.spectro", wave = hs_wren, wl = 200, ovlp = 95, flim = c(1, 13),
              collevels = seq(-55, 0, 5), dB = "B", X = st, col.clm = "colors",
              base.col = "white", t.mar = 0.07, f.mar = 0.1, strength = 3,
              interactive = NULL)

# create dynamic spectrogram
scrolling_spectro(wave = hs_wren, wl = 512, osc = TRUE,
                  t.display = 1.2, pal = reverse.gray.colors.1,
                  grid = FALSE, flim = c(1, 13), loop = 3,
                  width = 1000, height = 500, res = 120,
                  collevels = seq(-100, 0, 1),
                  spectro.call = sp_cl, fps = 60,
                  file.name = "gray.mp4")

The ‘spectro.call’ argument can also be used to add annotations. To do this we need to wrap up both the spectrogram function and the annotation functions (i.e. text(), lines()) in a single function and then save the call to that function:


# create color column
st$colors <- viridis(10)[c(3, 8)]

# create label column
st$labels <- c("male", "female")

# shrink end of second selection (purely aesthetics)
st$end[2] <- 3.87

  # function to highlight selections
ann_fun <- function(wave, X){

  # print spectrogram
  color.spectro(wave = wave,  wl = 200,
              ovlp = 95, flim = c(1, 18.6), collevels = seq(-55, 0, 5),
              dB = "B", X = X, col.clm = "colors",
              base.col = "white", t.mar = 0.07, f.mar = 0.1,
              strength = 3, interactive = NULL)

  # annotate each selection in X
  for(e in 1:nrow(X)){
    # label
    text(x = X$start[e] + ((X$end[e] - X$start[e]) / 2),
         y = 16.5, labels = X$labels[e], cex = 3.3,
         col = adjustcolor(X$colors[e], 0.6))

    # line
    lines(x = c(X$start[e], X$end[e]), y = c(14.5, 14.5),
          lwd = 6, col = adjustcolor("gray50", 0.3))
  }

}

# save call
ann_cl <- call("ann_fun", wave = hs_wren, X = st)

# create annotated dynamic spectrogram
scrolling_spectro(wave = hs_wren, wl = 200, t.display = 1.2,
                  grid = FALSE, flim = c(1, 18.6), loop = 3,
                  width = 1000, height = 500, res = 200,
                  collevels = seq(-100, 0, 1), speed = 0.5,
                  spectro.call = ann_cl, fps = 120,
                  file.name = "../viridis_annotated.mp4")

Finally, the argument ‘annotation.call’ can be used to add static labels (i.e. non-scrolling). It works similar to ‘spectro.call’, but requires a call from text(). This let users customize things as size, color, position, font, and additional arguments taken by text(). The call should also include the argmuents ‘start’ and ‘end’ to indicate the time at which the labels are displayed (in s). ‘fading’ is optional and allows fade-in and fade-out effects on labels (in s as well). The following code downloads a recording containing several frog species recorded in Costa Rica from figshare, cuts a clip including two species and labels it with a single label:


# read data from figshare
frogs <- read_wave("https://ndownloader.figshare.com/files/22829075")

# cut a couple of species
shrt_frgs <- cutw(frogs, from = 35.3, to = 50.5, output = "Wave")

# make annotation call
ann_cll <- call("text", x = 0.25, y = 0.87,
                labels = "Frog calls", cex = 1, start = 0.2, end = 14,
                col = "#FFEA46CC", font = 3, fading = 0.6)

# create dynamic spectro
scrolling_spectro(wave = shrt_frgs, wl = 512, ovlp = 95,
                  t.display = 1.1, pal = cividis,
                  grid = FALSE, flim = c(0, 5.5), loop = 3,
                  width = 1200, height = 550, res = 200,
                  collevels = seq(-40, 0, 5), lcol =  "#FFFFFFCC",
                  colbg = "black", fps = 60, file.name = "../frogs.mp4",
                  osc = TRUE, height.prop = c(3, 1), colwave = "#31688E",
                  lty = 3, annotation.call = ann_cll)

The argument accepts more than one labels as in a regular text() call. In that case ‘start’ and ‘end’ values should be supplied for each label:


# make annotation call for 2 annotations
ann_cll <- call("text", x = 0.25, y = 0.87,
                labels = c("Dendropsophus ebraccatus", "Eleutherodactylus coqui"),
                cex = 1, start = c(0.4, 7),
                end = c(5.5, 14.8), col = "#FFEA46CC", font = 3, fading = 0.6)

# create dynamic spectro
scrolling_spectro(wave = shrt_frgs, wl = 512, ovlp = 95,
                  t.display = 1.1, pal = cividis,
                  grid = FALSE, flim = c(0, 5.5), loop = 3,
                  width = 1200, height = 550, res = 200,
                  collevels = seq(-40, 0, 5), lcol =  "#FFFFFFCC", colbg = "black",
                  fps = 60, file.name = "../frogs_sp_labels.mp4", osc = TRUE,
                  height.prop = c(3, 1),colwave = "#31688E", lty = 3,
                  annotation.call = ann_cll)

Matt’s approach: “Paged Dynamic Spectrograms”


Workflow

  1. Tweak your spectrogram settings using the prep_static_ggspectro() function – aka prepStaticSpec() – storing results in variable. You can also just segment and export static specs at this step.
  2. Feed variable into paged_spectro() – aka pagedSpec() – to generate a dynamic spectrogram
#list WAVs included with dynaSpec
(f<-system.file(package="dynaSpec") |> list.files(pattern=".wav",full.names=T))

#store output and save spectrogram to working directory
params <-prep_static_ggspectro(f[1],destFolder="wd",savePNG=T)

Static spectrogram of a female barn swallow song

Static Spectrogram of a female barn swallow song

#let's add axes
femaleBarnSwallow<-prep_static_ggspectro(f[1],destFolder=tempdir(),savePNG=T,onlyPlotSpec = F)
Static spectrogram with axis labels for female barn swallow song

#Now generate a dynamic spectrogram
paged_spectro(femaleBarnSwallow)

Dynamic spectrogram of a female barn swallow song

Now brighten the spec using the ampTrans parameter


#note that prep_static_spectro() is tha same as prepStaticSpec()
#Also paged_spectro() is the same as pagedSpec()

p2<-prepStaticSpec(f[1],min_dB=-35, savePNG=T, destFolder="wd",onlyPlotSpec=F,bgFlood=T,ampTrans=3)
pagedSpec(p2)
Static spectrogram with axis labels for female barn swallow song

Now also supports .mp3 files (web or local) and multi-page dynamic spectrograms (i.e. cropping and segmenting spectrograms from larger recording files)


whale<-prepStaticSpec("http://www.oceanmammalinst.org/songs/hmpback3.wav",
       savePNG=T,destFolder="wd",yLim=c(0,.7),crop=12,xLim=3,ampTrans=3)
pagedSpec(whale)
#Voila 🐋

Static whale song spectrogram

Humpback whale song spectrogram

Dynamic multipage whale song spectrogram

Example using Xeno-Canto to generate a multi-page dynamic spectrogram of a common nighthawk call (w/ different color scheme)


song="https://www.xeno-canto.org/sounds/uploaded/SPMWIWZKKC/XC490771-190804_1428_CONI.mp3"
temp=prepStaticSpec(song,crop=20,xLim=4,colPal = c("white","black"))
pagedSpec(temp,vidName="nightHawk" ,highlightCol = "#d1b0ff",cursorCol = "#7817ff")

Nighthawk multipage dynamic spec

Enjoy! Please share your specs with us on Twitter! @M_Araya_Salas & @mattwilkinsbio


Please cite dynaSpec as follows:

Araya-Salas, Marcelo and Wilkins, Matthew R. (2020), dynaSpec: dynamic spectrogram visualizations in R. R package version 1.0.0.
