diegr: Dynamic and Interactive EEG Graphics

Overview

The diegr package enables researchers to visualize high-density electroencephalography (HD-EEG) data with animated and interactive graphics, supporting both exploratory and confirmatory analyses of sensor-level brain signals.

The package diegr includes:

• interactive boxplots (boxplot_epoch(), boxplot_subject(), boxplot_rt())
• interactive waveforms (interactive_waveforms()) and surface plots (interactive_surfaceplot(), interactive_surfaceplot_curves())
• topographic maps in 2D (topo_plot())
• scalp plots in 3D (scalp_plot())
• functions for computing summary statistics, baseline correction, pointwise and jackknife means (summary_stats_rt(), baseline_correction(), compute_mean())
• functions for easy selection of data subsets or regions of interest (pick_data(), pick_region())
• functions for plotting the mean with pointwise confidence intervals (plot_time_mean(), plot_topo_mean())
• animations of the time course of raw signals or averages in 2D and 3D (animate_topo(), animate_topo_mean(), animate_scalp())

Installation

You can install the current version of diegr from CRAN with:

install.packages("diegr")

or the latest development version from GitHub with:

# install.packages("pak")
pak::pak("gerslovaz/diegr")

Data

Due to the large volumes of data obtained from HD-EEG measurements, the package allows users to work directly with database tables (in addition to common formats such as data frames or tibbles). This approach is much more memory-efficient.

The database you want to use as input to diegr functions must contain columns with the following structure:

• group - group IDs,
• subject - subject IDs,
• sensor - sensor labels,
• epoch - epoch numbers,
• condition - experimental condition labels,
• time - time-point indices (as sampling indices, not in ms),
• signal - the EEG signal amplitude in microvolts (in most functions, the name of the column containing the amplitude can be customized arbitrarily).

Note: It is not necessary for the data to contain all variables, but if it does, they must be named according to the structure presented above. You can use the check_structure() function, which checks the data structure and prints the inferred hierarchy.

The package includes several example datasets:

• epochdata: epoched HD-EEG data (anonymized small subset of a large HD-EEG study presented in Madetko-Alster et al., 2025) for two subjects and 204 selected sensors at 50 time points (measured using the EGI HCGSN256 system),
• rtdata: response times (time between stimulus presentation and a button press) from the experiment involving a simple visual motor task (anonymized small subset of a large HD-EEG study presented in Madetko-Alster et al., 2025)

as well as datasets containing sensor position coordinates:

• HCGSN256: a list with Cartesian coordinates of HD-EEG sensor positions in 3D space on the scalp surface and their projection into 2D space according to the EGI HCGSN256 template,
• biosemi128 and biosemi256: lists with Cartesian coordinates of HD-EEG sensor positions in 3D space on the scalp surface and their projection into 2D space according to the BioSemi system with 128 and 256 electrodes,
• system1005: a list with Cartesian coordinates of HD-EEG sensor positions in 3D space on the scalp surface and their projection into 2D space according to the standard 10-05 system.

For more information about the structure of the built-in data, see the package vignette vignette("diegr", package = "diegr").

Quick examples

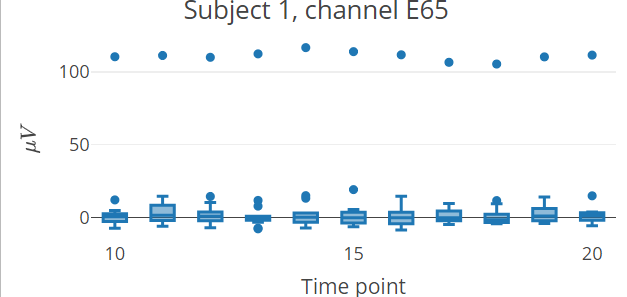

Interactive boxplot

This basic example shows how to plot interactive epoch boxplots from a chosen electrode at different time points for one subject:

library(diegr)
data("epochdata")

epochdata |>
  pick_data(subject_rg = 1, sensor_rg = "E65") |>
  boxplot_epoch(amplitude = "signal", time_lim = 10:20)

Note: The README format does not support interactive plotly elements, therefore, only a static preview of the result is shown.

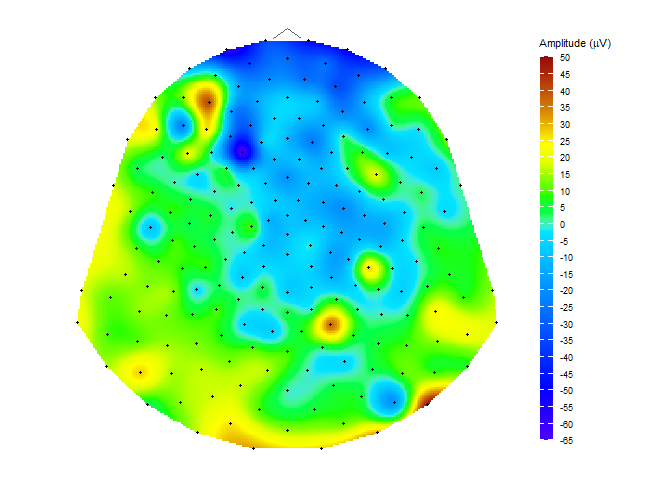

Topographic map

data("HCGSN256")
# creating a mesh
M1 <- point_mesh(dimension = 2, n = 30000, type = "polygon",
                 template = "HCGSN256",
                 sensor_select = unique(epochdata$sensor))
# filtering a subset of data to display
data_short <- epochdata |>
  pick_data(subject_rg = 1, time_rg = 15, epoch_rg = 10)
# or you can use dplyr::filter()
# dplyr::filter(subject == 1 & epoch == 10 & time == 15)
# function for displaying a topographic map of the chosen signal on the created mesh M1
topo_plot(data_short, amplitude = "signal", mesh = M1)

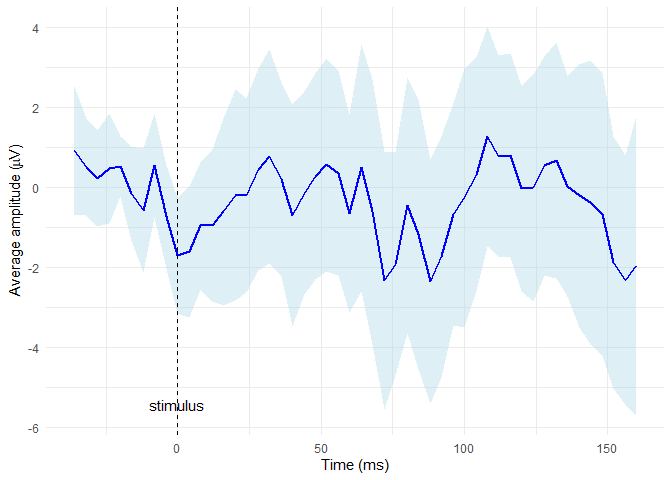

Computing and displaying the average in the time domain

Compute the average signal for subject 2 from channels E65 and E34 (excluding the outlier epochs 14 and 15) and then display it along with confidence interval (CI) bounds (using plot_time_mean() conditioned by sensor).

# extract required data
edata <- epochdata |>
  pick_data(subject_rg = 2, sensor_rg = c("E34", "E65"), epoch_rg = 1:13)
# baseline correction
data_base <- baseline_correction(edata, baseline_range = 1:9)
# compute average
data_mean <- data_base |>
  compute_mean(amplitude = "signal_base", type = "point", domain = "time")
# plot the average line with CI
plot_time_mean(data = data_mean, t0 = 10, condition_column = "sensor", legend_title = "Sensor")

For detailed examples, usage instructions, and troubleshooting information, including system requirements, see the package vignette: vignette("diegr", package = "diegr").

References Madetko-Alster N., Alster P., Lamoš M., Šmahovská L., Boušek T., Rektor I. and Bočková M. The role of the somatosensory cortex in self-paced movement impairment in Parkinson’s disease. Clinical Neurophysiology. 2025, vol. 171, 11-17. https://doi.org/10.1016/j.clinph.2025.01.001

License This package is distributed under the MIT license. See the LICENSE file for details.

Citation Use citation("diegr") to cite this package.
